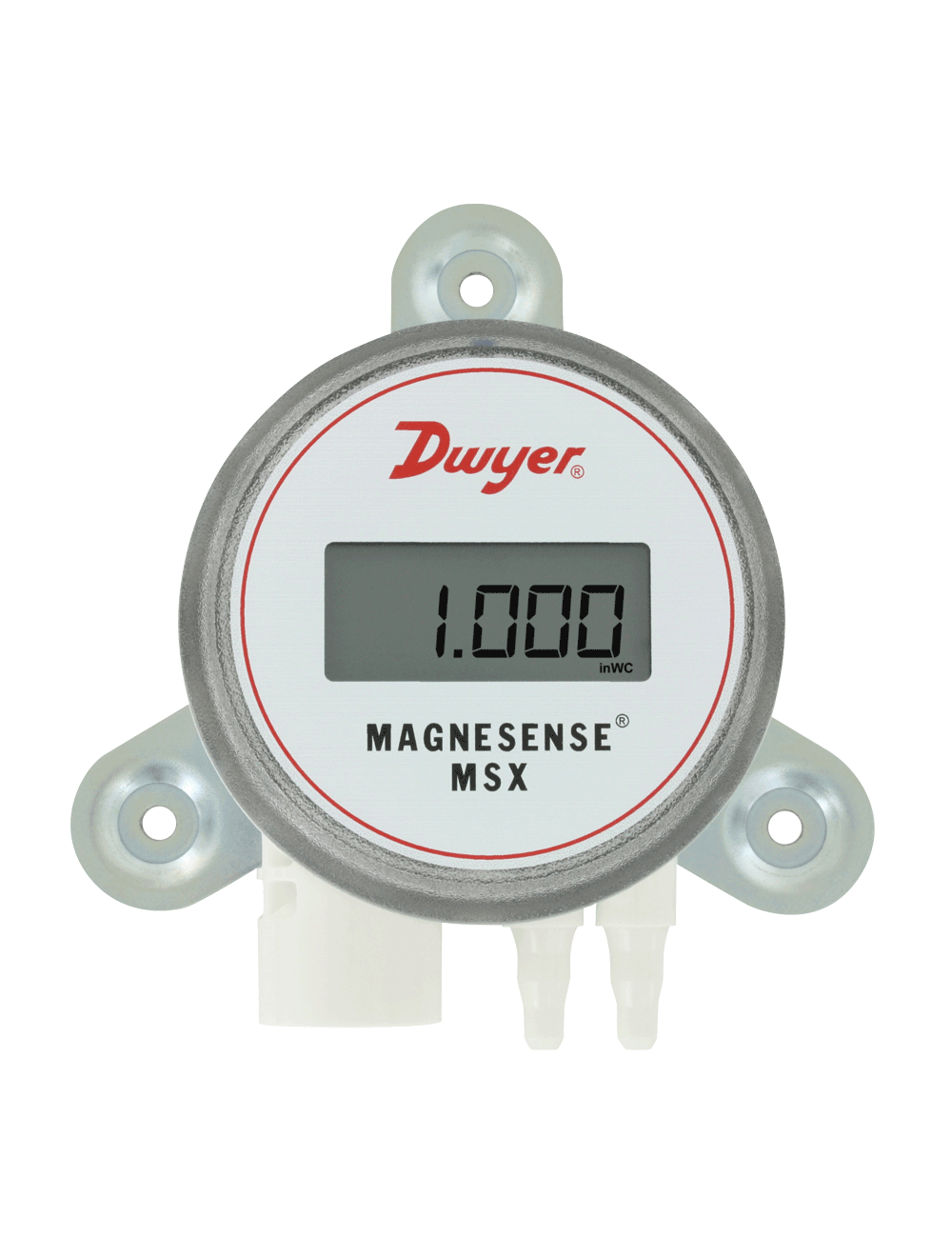

Series MSX Magnesense® Differential Pressure Transmitter

(0 customer reviews) 0 sold

Filter monitoring in air handler units
Building pressure in pharmaceutical/semiconductor clean rooms
Duct static pressure in commercial buildings
Air velocity/flow in VAV systems

Danh mục: Transmitters

Specifications

Service:: Air and non-combustible, compatible gases.
Wetted Materials:: Consult factory.
Accuracy:: ±1% FSO.
Stability:: ±1% FSO/year.
Temperature Limits:: -4 to 158°F (-20 to 70°C).
Pressure Limits:: Ranges 0 and 1: 3.6 psi (24.8 kPa) max operation, 6 psi (41.3 kPa) burst; Ranges 2, 3 and 4: 6 psi (41.3 kPa) max operation, 6 psi (41.3 kPa) burst.
Power Requirements:: 10-36 VDC (2-wire), 17-36 VDC or isolated 21.6-33 VAC (3-wire).
Output Signals:: 4-20 mA (2-wire); 0-10 V or 0-5 V selectable (3-wire).
Response Time:: Instantaneous (default) or 3 s (selectable).
Zero and Span Adjustments:: Digital push-button.
Loop Resistance:: Current output: 0-1250 Ω max; Voltage output: min. load resistance 1 k Ω.
Current Consumption:: 21 mA max continuous.
Electrical Connections:: 4-wire removable European style terminal block for 16 to 26 AWG.
Electrical Entry:: 1/2" NPS thread.
Display (optional):: 4 digit LCD.
Process Connections:: 1/8", 3/16", 1/4", 5 mm, and 6 mm ID flexible tubing.
Enclosure Rating:: NEMA 4X (IP66), UL 2043 (Plenum), UL94 V-0.
Mounting Orientation:: Pressure sensor measurement unaffected by orientation.
Weight:: 8.0 oz (230 g).
Compliance:: CE.

Ordering

Model	Description	Availability*	Price
MSX-U12-IN	Differential pressure transmitter, universal (duct or wall) mount, universal current/volt outputs, uni-directional, range 2 (1, 2, 3, 5″ wc).	1-3 days*	$137.30
MSX-U12-IN-LCD	Differential pressure transmitter, universal (duct or wall) mount, universal current/volt outputs, uni-directional, range 2 (1, 2, 3, 5″ wc) with LCD display.	Less Than 1 Week*	$187.50
MSX-W10-IN	Differential pressure transmitter, wall mount, universal current/voltage outputs, uni-directional, range 0 (0.1, 0.15, 0.25, 0.5″ wc).	1-3 days*	$111.30
MSX-W10-IN-LCD	Differential pressure transmitter, wall mount, universal current/voltage outputs, uni-directional, range 0 (0.1, 0.15, 0.25, 0.5″ wc) with LCD display.	1-3 days*	$161.50
MSX-W10-PA	Differential pressure transmitter, wall mount, universal current/voltage outputs, uni-directional, range 0 (60, 75, 100, 125 Pa).	1-3 days*	$111.30
MSX-W11-IN	Differential pressure transmitter, wall mount, universal current/voltage outputs, uni-directional, range 1 (0.1, 0.25, 0.5, 1″ wc).	1-3 days*	$111.30
MSX-W11-IN-LCD	Differential pressure transmitter, wall mount, universal current/voltage outputs, uni-directional, range 1 (0.1, 0.25, 0.5, 1″ wc) with LCD display.	1-3 days*	$161.50
MSX-W11-PA	Differential pressure transmitter, wall mount, universal current/voltage outputs, uni-directional, range 1 (25, 100, 125, 250 Pa).	1-3 days*	$111.30
MSX-W12-IN	Differential pressure transmitter, wall mount, universal current/voltage outputs, uni-directional, range 2 (1, 2, 3, 5″ wc).	1-3 days*	$111.30
MSX-W12-IN-LCD	Differential pressure transmitter, wall mount, universal current/voltage outputs, uni-directional, range 2 (1, 2, 3, 5″ wc) with LCD display.	1-3 days*	$161.50
MSX-W12-PA	Differential pressure transmitter, wall mount, universal current/voltage outputs, uni-directional, range 2 (600, 750, 1000, 1250 Pa).	1-3 days*	$111.30
MSX-W12-PA-LCD	Differential pressure transmitter, wall mount, universal current/voltage outputs, uni-directional, range 2 (600, 750, 1000, 1250 Pa), LCD display	1-3 days*	$161.50
MSX-W13-IN	Differential pressure transmitter, wall mount, universal current/voltage outputs, uni-directional, range 3 (10, 15, 25, 28″ wc).	1-3 days*	$111.30
MSX-W13-IN-LCD	Differential pressure transmitter, wall mount, universal current/voltage outputs, uni-directional, range 3 (10, 15, 25, 28″ wc) with LCD display.	1-3 days*	$161.50
MSX-W13-PA	Differential pressure transmitter, wall mount, universal current/voltage outputs, uni-directional, range 3 (3000, 4000, 5000, 7000 Pa).	1-3 days*	$111.30
MSX-W20-IN	Differential pressure transmitter, wall mount, universal current/voltage outputs, bi-directional, range 0 (0.1, 0.15, 0.25, 0.5″ wc).	1-3 days*	$111.30
MSX-W20-IN-LCD	Differential pressure transmitter, wall mount, universal current/voltage outputs, bi-directional, range 0 (0.1, 0.15, 0.25, 0.5″ wc) with LCD display.	1-3 days*	$161.50
MSX-W20-PA	Differential pressure transmitter, wall mount, universal current/voltage outputs, bi-directional, range 0 (60, 75, 100, 125 Pa).	1-3 days*	$111.30
MSX-W21-IN	Differential pressure transmitter, wall mount, universal current/voltage outputs, bi-directional, range 1 (0.1, 0.25, 0.5, 1″ wc).	1-3 days*	$111.30
MSX-W22-IN	Differential pressure transmitter, wall mount, universal current/voltage outputs, bi-directional, range 2 (1, 2, 3, 5″ wc).	1-3 days*	$111.30
MSX-W22-IN-LCD	Differential pressure transmitter, wall mount, universal current/voltage outputs, bi-directional, range 2 (1, 2, 3, 5″ wc) with LCD display.	1-3 days*	$161.50
MSX-W22-PA	Differential pressure transmitter, wall mount, universal current/voltage outputs, bi-directional, range 2 (600, 750, 1000, 1250 Pa).	1-3 days*	$111.30
MSX-W23-IN	Differential pressure transmitter, wall mount, universal current/voltage outputs, bi-directional, range 3 (10, 15, 25, 28″ wc).	1-3 days*	$111.30
MSX-W23-IN-LCD	Differential pressure transmitter, wall mount, universal current/voltage outputs, bi-directional, range 3 (10, 15, 25, 28″ wc), LCD display	1-3 days*	$161.50
